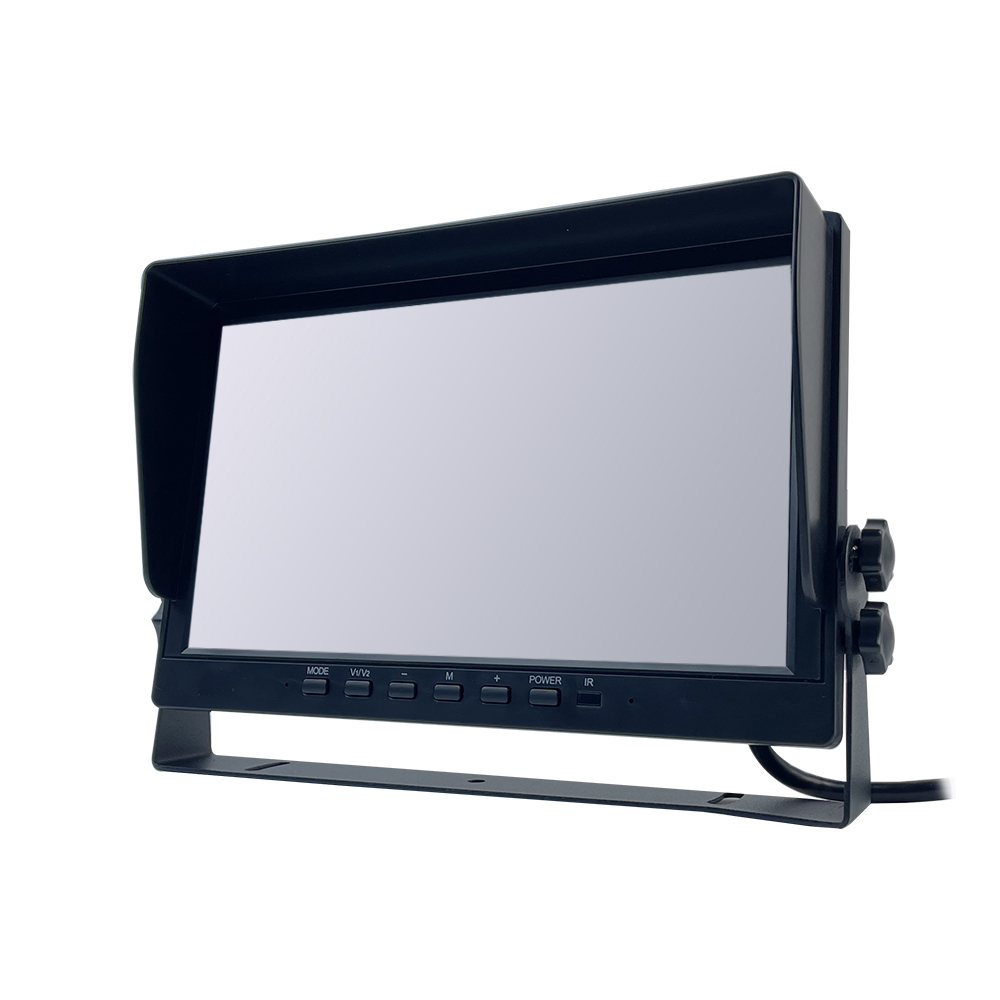

10.1inch Recording HD Quad Mode Car Rearview Monitor

Model: TF103-04AHDQ-S

Screen Size10.1 inch
Resolution1024 × 600
TV SystemPAL / NTSC
Video Inputs4CH camera inputs, 3CH trigger
Video Input SignalAHD1080P / 720P / CVBS
Audio InputOptional
Aspect Ratio16:9
Connections4 Pin Din
Recording FunctionSD Card storage, max. 256GB
Power SupplyDC 12V / 24V

Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.

Send email to us

Features:

  • 10.1inch TFT Monitor
  • Resolution: 1024×600
  • 16:9 wide screen display
  • Brightness 550cd/m2
  • Contrast 800 (Typ.)
  • 4 Ways inputs AHD1080P/720P/CVBS
  • Viewing  angle: 85/85/85/85(L/R/U/D)
  • PAL& NTSC
  • Power supply: DC 12V/24V compatible.
  • Power Consumption: 6W
  • with video recording function
  • SD card MAX256G
  • 4 channel synchronous preview
  • Frame rate: 25/30fps
  • Video input: 1.0Vp-p
  • Operation: Remote /press button
  • Operatiom Temprature – 20 ～70 ℃
  • Dimension: (L)251*168(W)*(T)66.5mm
