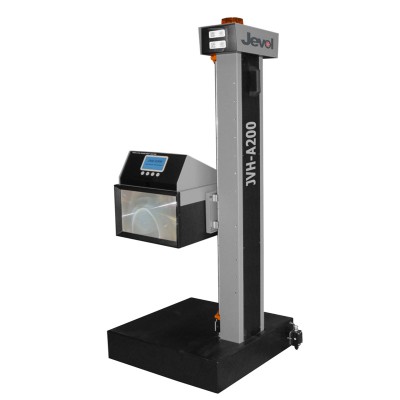

JVH-A200 Automatic Headlamp Tester
Jevol designed JVH-A200 Automatic Headlamp Tester
- With new technology of CMOS machine vision camera and high-speed DSP(Digital Signal Processor), all parameters of high-beam and low-beam are tested accurately and automatically.
- With strong software function and LCD display, inspection, calibration and adjustment can be completed quickly.
- Light Image Alignment technology, external interference can be eliminated, accurate and fast follow-light aiming is ensured, high-beam / low-beam inspection takes only 40 seconds.
- Adopting frequency conversion driving, horizontal movement is steady and reliable.
For more information please
Delivery, installation and calibration not included
Specifications
| Item | Parameters |
|---|---|
| Measuring Rage | Central height of Headlamp: 50cm ~ 130cm Luminous intensity: 0 ~ 120,000cd Deviation of optical axis: Up – Down: U 1〬 30 ’ ~ D 3 ° (U25cm/10m ~ D50cm/10m) Left – Right: L 3〬 ~ R 3〬 (L 50cm/10m ~ R50cm/10m) |
| Measurement Accuracy | Light intensity of high beam: ± 12% Optic axis deviation of high beam: ± 12 ’ Optic axis deviation of low beam: ± 15 ’ Central elevation of Headlamp: ± 1cm |
| Inspection Distance | 1m |
| Power Supply | AC 220V ± 10% 50Hz ±1Hz |
