HGV / Commercial Vehicle Mobile Brake Tester

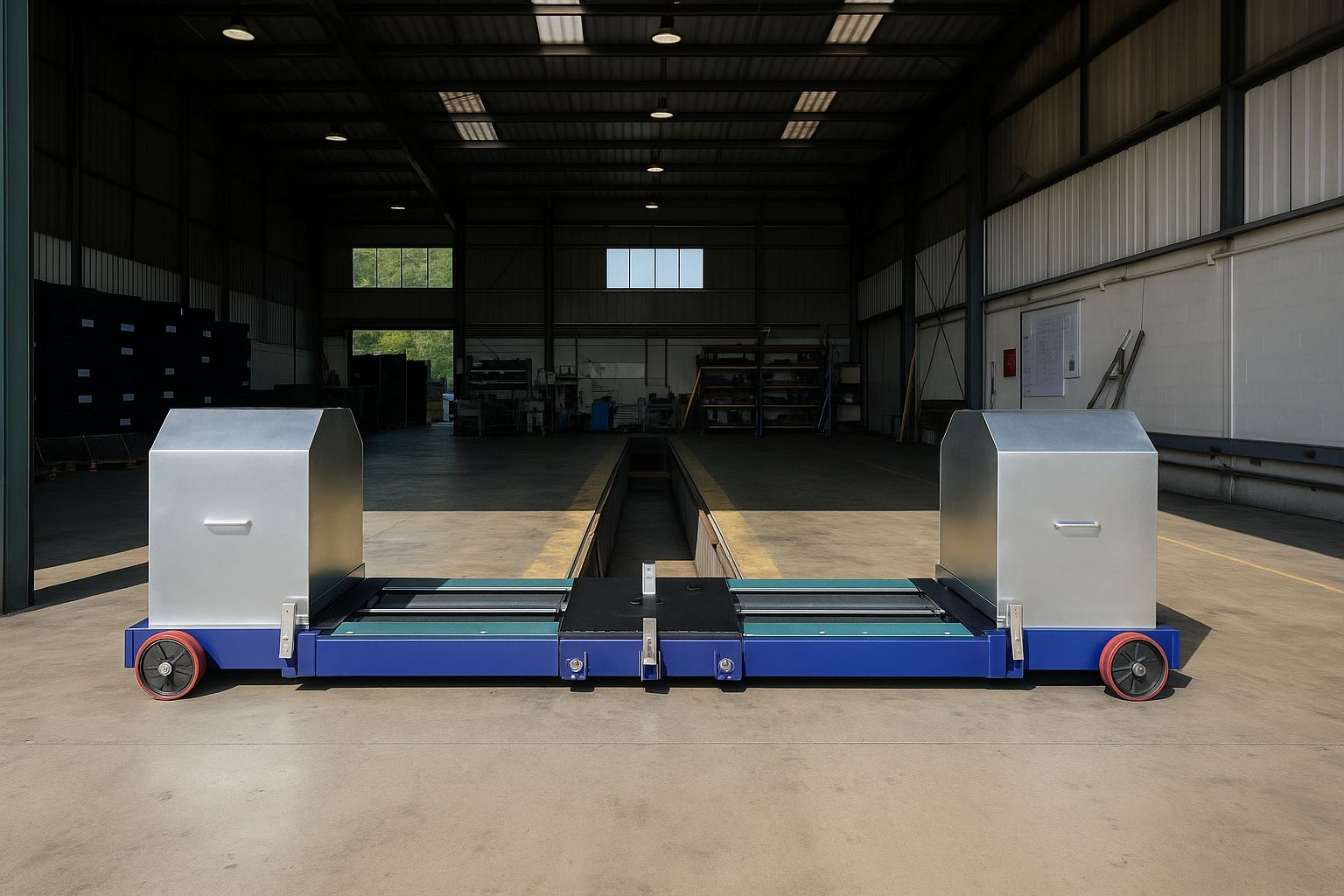

Jevol designed RRT-2500M, RRT-7500M and RRT-9500M Mobile Brake Tester
- For testing Brake Force, Brake Efficiency, Brake Imbalance, Friction Efficiency, Axle Load and Ovality
- No need pit foundation anymore, easy to move around.
- The corundum roller has more than 200,000 life span.
- High testing speed, can truly reflect the vehicle braking performance.
- Combined with weighing function.
- We provide solutions for Integration in vehicle cargo body.
- With Slip Rate testing to stop the motor, protect the tyres from wear.
- Together with Mobile Suspension Tester, Mobile Sideslip Tester, Mobile Play Detector to compose a test lane.
- Pedal Force Meter is optional, according to some country’s requirement.

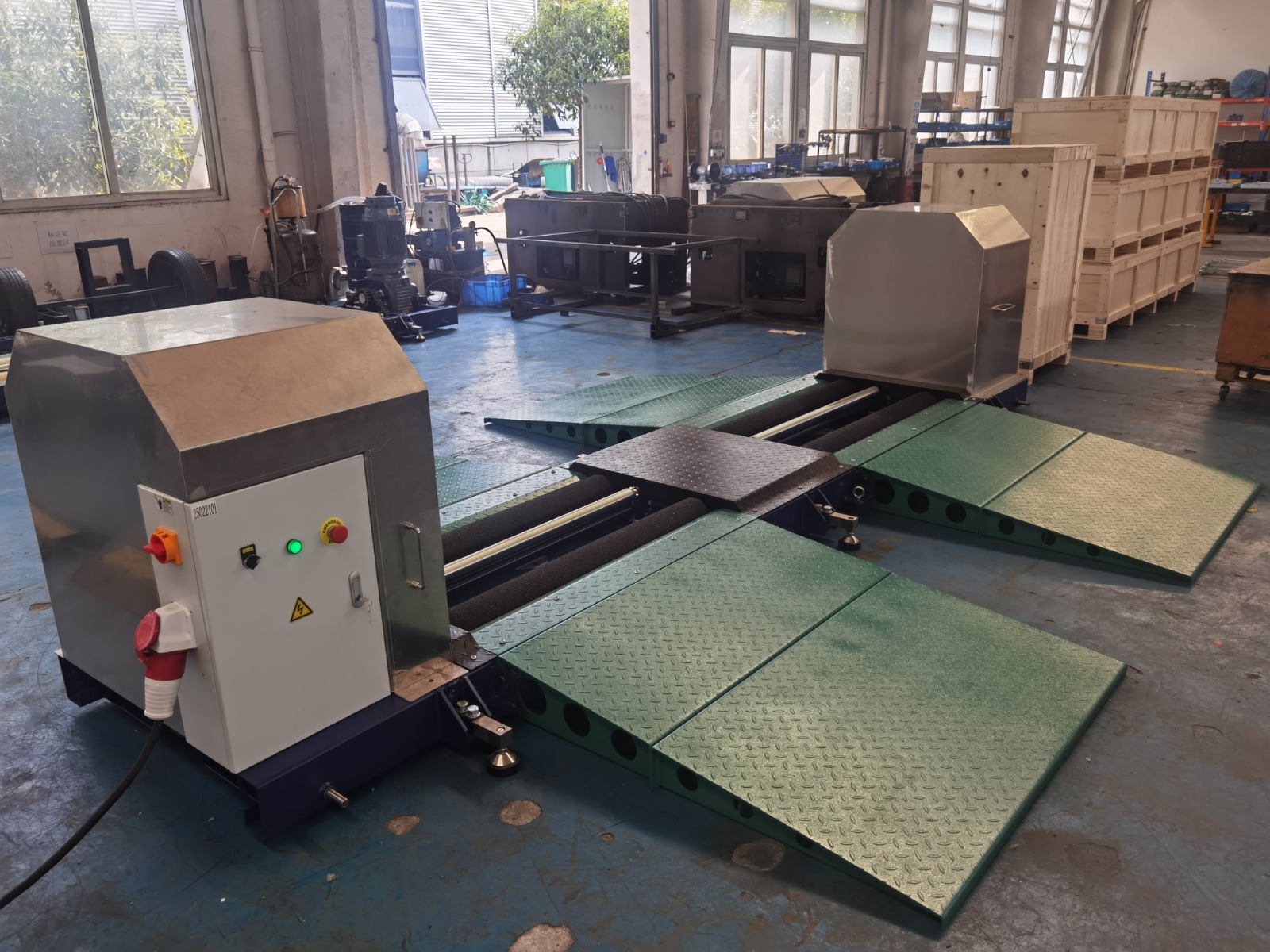

- Optional foldable aluminum ramps, make it lighter.
- Optional 4WD vehicle test function
- Optional reverse testing, vehicle could drive on the bench from two side, save space
For more information please
With the load simulator, the price starts from £34,950 + VAT. “
Delivery, installation and calibration not included
Specifications
| Item | RRT-2500M | RRT-7500M | RRT-9500M |
|---|---|---|---|
| Axle load | 3T | 10T | 15T |
| Motor power | 3kW*2 | 11kW*2 | 11kW*2 |
| Test speed | 2.5km/h | 2.5km/h | 2.0km/h |
| Test range | 0-9000N | 0-30kN | 0-45kN |
| Roller diameter | 150mm | 150mm | 150mm |
| Roller length | 750mm | 1,000mm | 1,200mm |
| Power supply | 380V 50Hz 3P | 380V 50Hz 3P | 380V 50Hz 3P |
| Dimension (LxWxH) Bench Ramp | Size: 3270x910x160(330)mm 1200x750x1600*4pcs | Size: 3990x1170x160(460)mm 1200x1000x160*4pcs | Size: 4450x1440x160(460)mm 1200x1000x1600*4pcs |
DGN788A multi-function board equipped with Jevol independent intellectual property rights
1．Strong core, help unlimited innovation
Using the advanced ARM CORTEX-M4 high-performance MCU, the 32-bit data processing capability easily exceeds the traditional 16-bit MCU. High main frequency, lowdata acquisition delay, easy to control multi-task operation. Equipped with DSP function, data operation speed doubled. Integrated network communication function, with wireless network card, completely discard signal cable shackles.
2．The data is accurate. Everything is under control
High precision external data acquisition chip, 16 bit resolution leads the era of accurate measurement. 8-channel synchronous data acquisition, up to 200K sampling frequency, tohelp you at a glance, data acquisition has never been faster!
3．Security guard, MCU guard
Isolated IO input function, all-round MCU protection, stable operation, safe innovation.
4．Powerful expansion to connect the world
Expandable to up to 12 channels of DO with up to 12 execution devices. The boardintegrates 5V,2.5A USB, easy power supply peripherals, enjoy scientific and technological convenience.
5．Multiple interfaces, unlimited possibilities
Rich interface resources, ASA command output, dot matrix screen, micro printer, pedal force meter… Show one by one, innovation unlimited possibilities!
6．JEVOL SMART_HW，intelligent engine
Customized for vehicle inspection system, efficient and simple JEVOL SMART_HWprogram, improve the efficiency of vehicle inspection, easy to navigate the future.
Products you might be interested in
FAQs
What is a mobile brake tester for HGV and commercial vehicles?
A mobile brake tester is a portable vehicle inspection system designed to measure brake force, brake efficiency, brake imbalance, friction efficiency, axle load, and ovality on HGVs, trucks, buses, and other commercial vehicles. Unlike traditional brake testers, it does not require a permanent pit foundation and can be moved to different testing locations.
What vehicle types can the Jevol Mobile Brake Tester inspect?
The Jevol RRT-2500M, RRT-7500M, and RRT-9500M models are suitable for a wide range of commercial vehicles, including HGVs, trucks, buses, trailers, vans, and fleet vehicles. Different models support axle loads ranging from 3 tonnes to 15 tonnes.
What brake performance measurements can the system provide?
The system can test brake force, brake efficiency, brake imbalance, friction efficiency, axle load, slip rate, and brake ovality. These measurements help operators verify vehicle safety and compliance with inspection requirements.
Does the mobile brake tester require a pit foundation?
No. One of the key advantages of the Jevol Mobile Brake Tester is that it does not require a pit foundation. Its portable design allows for quick installation and relocation, making it ideal for workshops, fleet operators, and mobile testing services.
What is the benefit of the slip rate testing function?
The slip rate testing feature automatically stops the motor when wheel slip is detected. This helps protect tyres from unnecessary wear while ensuring accurate brake performance measurements.
Can the mobile brake tester be integrated into a vehicle body?
Yes. Jevol provides integration solutions that allow the brake tester to be installed within a vehicle cargo body, creating a fully mobile testing station for on-site inspections.
Is a weighing function included with the brake tester?
Yes. The system includes a weighing function that measures axle loads during testing, helping operators assess vehicle weight distribution and overall braking performance.
Are there optional features available?
Yes. Optional features include a load simulator, pedal force meter, foldable aluminium ramps, 4WD vehicle testing capability, and reverse testing functionality, allowing vehicles to drive onto the bench from either side.
What are the advantages of the corundum rollers?
The corundum rollers are designed for durability and offer a service life exceeding 200,000 test cycles. They offer excellent grip and reliable performance during repeated commercial vehicle inspections.
Can the mobile brake tester be combined with other vehicle inspection equipment?
Yes. The brake tester can be used alongside the Jevol Mobile Suspension Tester, Mobile Sideslip Tester, and Mobile Play Detector to create a complete vehicle testing lane for comprehensive commercial vehicle inspections.
