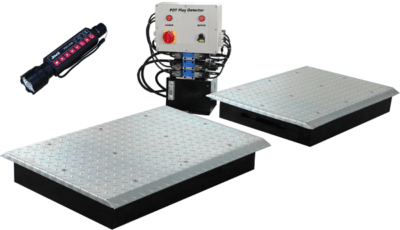

PDT-500/700/800 Play Detector

With Ultra-wide inspection plate of Play Detector, adapted to a variety of wheelbase vehicles.

  • Optional wireless remote controller.
  • With reset function, the device automatically returns to the middle after testing is complete.
  • When the device stops working for more than 1 minute, the motor automatically stops to prevent excessive oil temperature and energy saving.
  • With the circular motion function, the table plate can move back and forth continuously.

For more information please

Delivery, installation and calibration not included

Specifications

Item PDT-500 PDT-700 PDT-800
Max axle load 3T 10T 15T
Power supply 1.5kW 2.2kW 2.2kW
Motor power 380V/220V 3PH 380V/220V 3PH 380V/220V 3PH
Maximum movement range -40mm~40mm -50mm~50mm -50mm~50mm
Hydraulic pressure 7Mpa 16Mpa 16Mpa
Dimension (LxWxH) Left:580x580x70mm
Right:580x580x70mm
Pump:420x420x720mm
Left:1000x700x140mm
Right:1000x700x140mm
Pump:420x420x720mm
Left:1200x800x220mm
Right:1200x800x220mm
Pump:420x420x720mm
