Tire Tread Depth Scanner

FEATURES

  • Full-automatic tread depth measurement, directly pass through without stopping for measurement.
  • Precision optical measurement technology with the 0.1mm accuracy.
  • Automatic diagnostics and maintenance suggestions.
  • Risks warning, include slipping-tire risk, long braking distance risk.
  • Laser vision technology for contactless detection.

For more information please

Inquiry Now

Transport, installation and calibration not included.

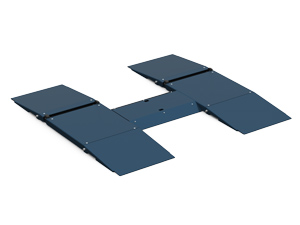

Floor Version

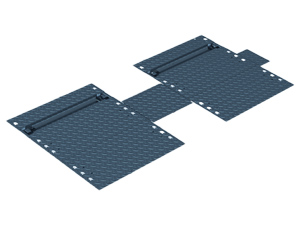

In-Ground Version

Specifications

Item Floor | In-Ground Floor | In-Ground
Model ATS-30r | ATS-30i ATS-150r | ATS-150i
Accuracy 0.1mm 0.3mm
Protection Level IP54 IP54
Test Range 12mm 20mm
Test Width 530mm 900mm
Test Speed ≤10km/h ≤10km/h
Min Chassis Height 95mm | No Requirement 160mm | No Requirement
Power Supply AC110 ~ 220V, 200W AC110 ~ 220V, 200W
Temperature | Humidity -10°C～50°C | 20～80% -10°C～50°C | 20～80%
