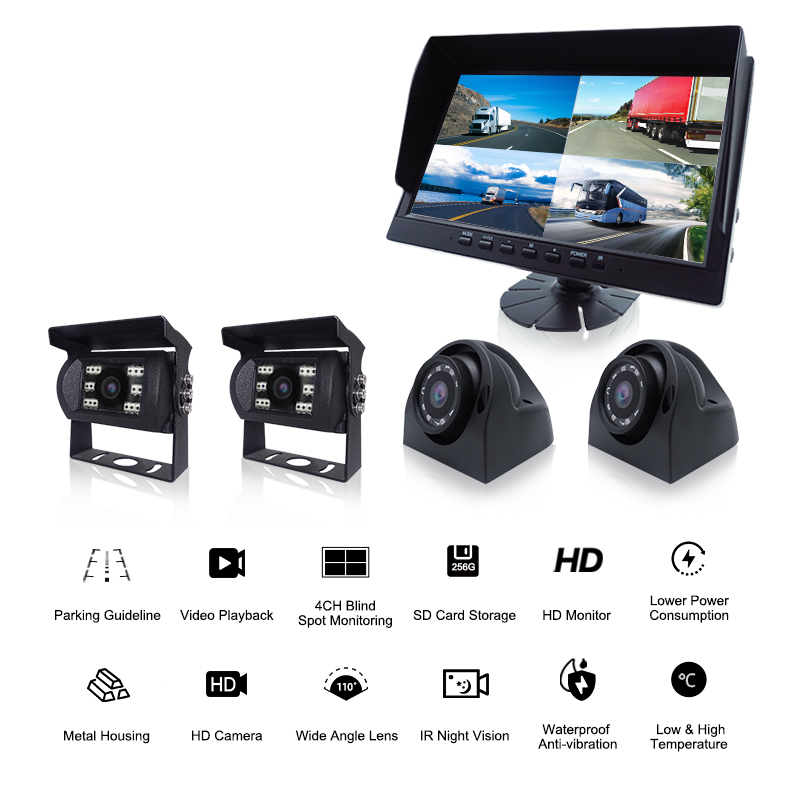

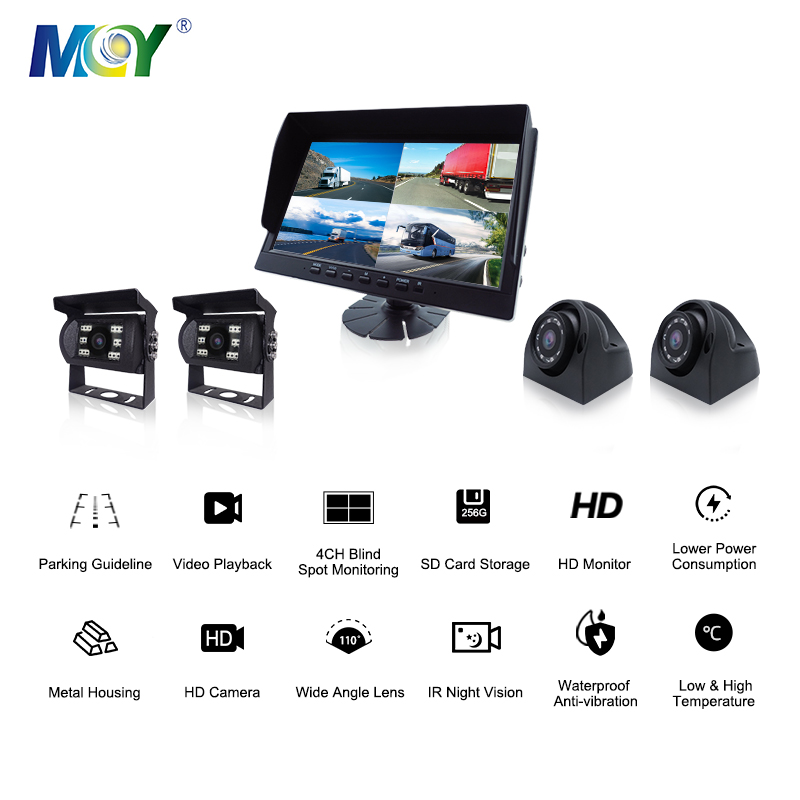

4 Channel Rear View Reverse Backup Truck Camera 10.1 inch Monitor
Model: TF103-04AHDQ-S
- 10.1inch HD camera monitor system
- 16:9 wide screen display

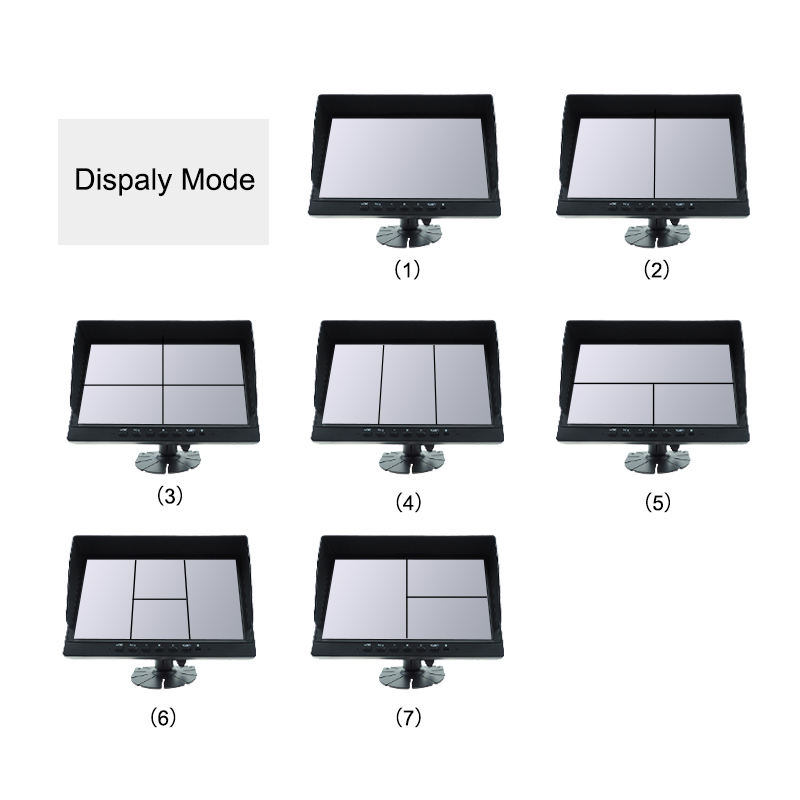

- Multi-split display modes, supports up to 4 camera inputs

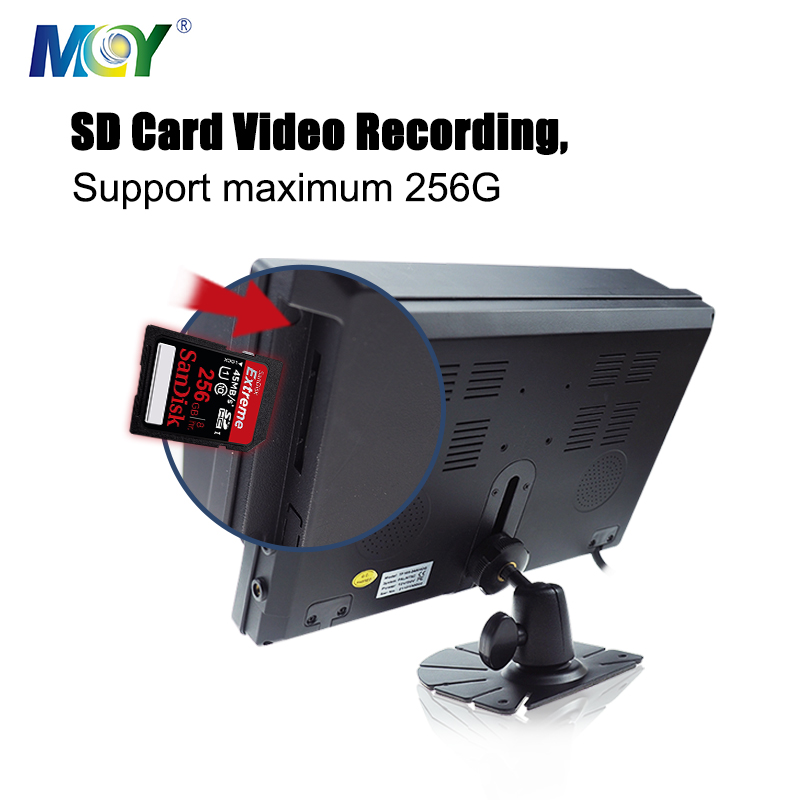

- High-capacity video recording, supports 1x256GB SD card
Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.
Send email to us
Product Details
The 4-channel rearview reversing camera and monitor combination for trucks plays a critical role in enhancing safety and reducing accidents when driving in reverse or maneuvering in tight spaces.
Improved Visibility: The 4-channel rearview reversing camera and monitor combination provides drivers with a clear view of the surrounding areas of the truck, including blind spots that are not visible through the side mirrors. This improves visibility and helps to prevent accidents caused by obstructions or blind spots.
Enhanced Safety: The combination of rearview reversing camera and monitor provides drivers with a clear and accurate view of the rear of the truck, which can help them to avoid obstacles, pedestrians, and other hazards that may be present. This enhances safety for the driver, other road users, and pedestrians.
Reduced Accidents: The 4-channel rearview reversing camera and monitor combination helps to reduce accidents caused by blind spots, obstructions, and other hazards that may not be visible through the side mirrors. This can help to prevent accidents and reduce the risk of damage to the truck, other vehicles, and property.
Improved Maneuverability: The rearview reversing camera and monitor combination allows drivers to maneuver the truck in tight spaces more easily and accurately. This can help to reduce the risk of collisions and damage to the truck or other property.
Increased Efficiency: The 4-channel rearview reversing camera and monitor combination helps to improve the efficiency of truck drivers by reducing the time and effort required to reverse or maneuver in tight spaces. This can help to reduce delays and improve overall productivity.
In conclusion, the 4-channel rearview reversing camera and monitor combination for trucks plays a critical role in enhancing safety, reducing accidents, improving maneuverability, and increasing efficiency for truck drivers. It provides drivers with a clear and accurate view of the surrounding areas of the truck, which can help to prevent accidents and reduce the risk of damage to the truck or other property.
Product Parameter
1080P 12V 24V 4 Camera Quad Screen Video Recorder 10.1 Inch LCD Monitor Bus Truck Camera Reverse System

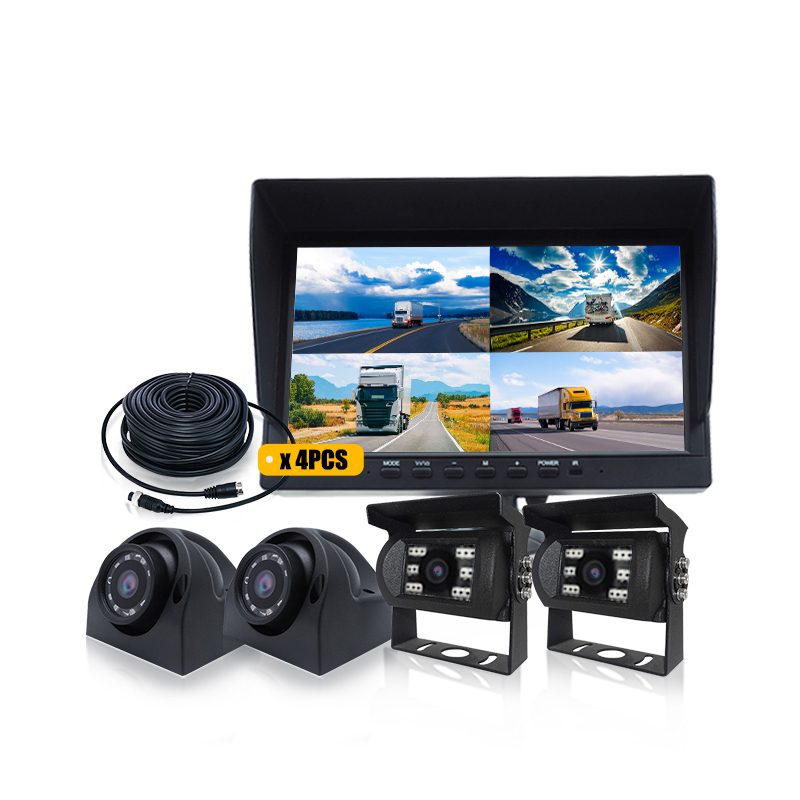

1pcs 10.1″ TFT LCD color quad monitor, model: TF103-04AHDQ-S
4pcs Waterproof cameras with IR LEDs Night Vision (AHD 1080P, IR Night Vision, IP67 waterproof)
4pcs 4Pin extension cable for cameras (3, 5, 10, 15, 20 meter for option)
1pcs Remote control (Without Battery)

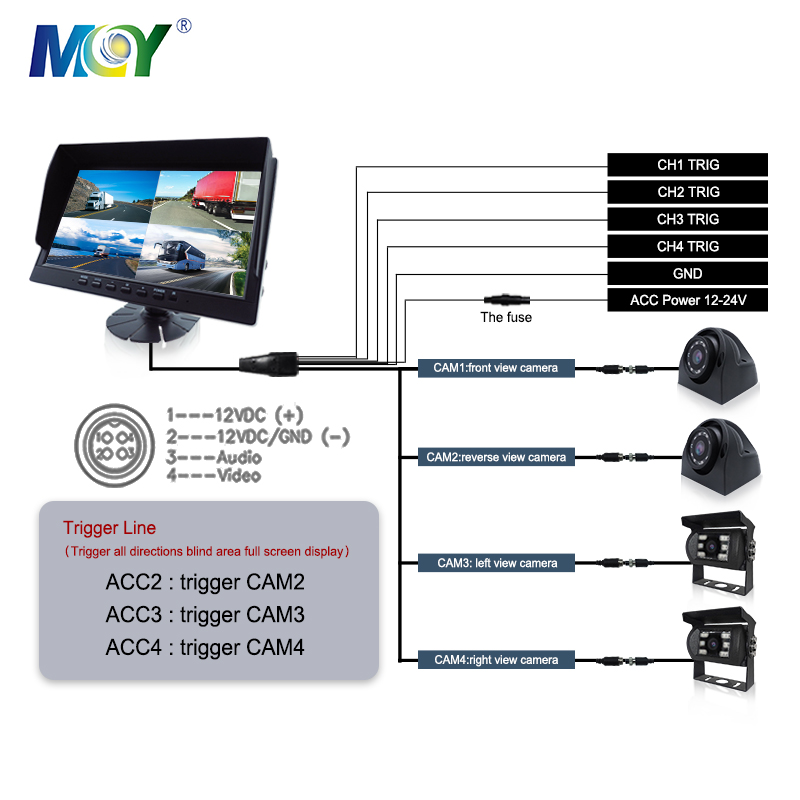

Electrical Connecting Cable
Screw kit for installation
User manual
Product Specification
| 10.1 inch TFT LCD Color Quad Monitor | |
|---|---|
| Resolution | 1024(H)×600(V) |
| Brightness | 400cd/m² |
| Contrast | 500:1 |
| TV System | PAL & NTSC (AUTO) |
| Video Input | 4CH AHD720/1080P/CVBS |
| SD Card Storage | max.256GB |
| Power supply | DC 12V/24V |
| Camera | |
| Connector | 4pin |
| Resolution | AHD 1080p |
| Night Vision | IR Night Vision |
| TV System | PAL/NTSC |
| Video Output | 1 Vp-p, 75Ω, AHD |
| Waterproof | IP67 |
| *NOTE: Please contact MCY for more specific information before starting order. Thanks. | |
