7 inch 4 Channel Quad Monitor
Model: TF78-04AHDQ-S
| Screen Size: | 7 inch |
|---|---|
| Resolution: | 1024 x 600 |
| TV System: | PAL / NTSC AUTO |
| Video Inputs: | 4CH camera inputs, 3CH trigger |
| Video Inputs Signal: | AHD1080P / 720P / CVBS |
| Aspect Ratio: | 16:9 |
| Connections: | 4 Pin Din |
| Power Supply: | IP69K waterproof |
Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.
Send email to us
Features:

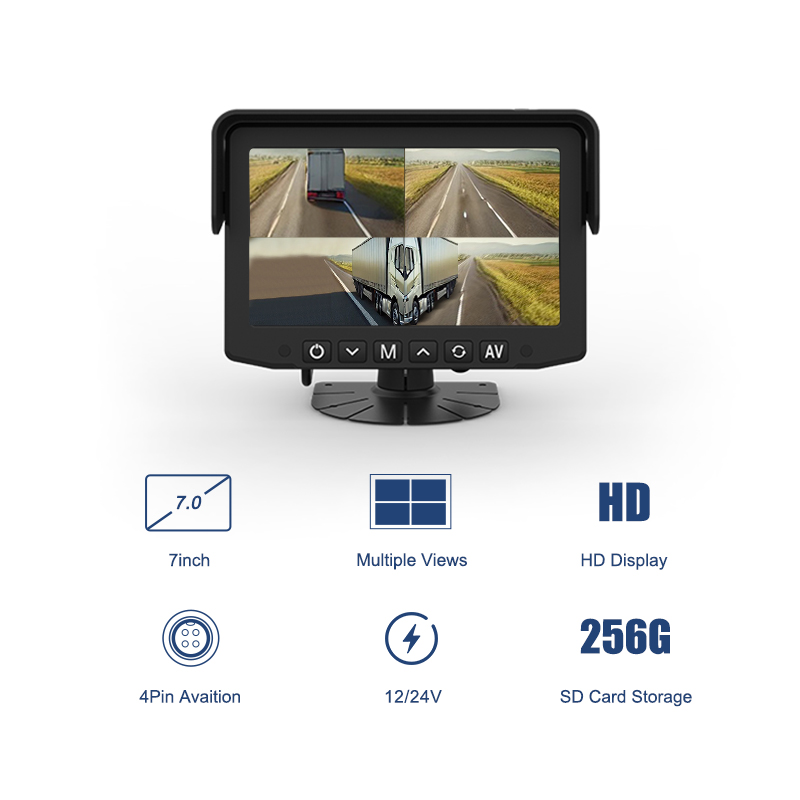

- 7Inch TFT LCD Screen: 1024*600 high resolution, 16:9 widescreen display, 4 channel quad split display.

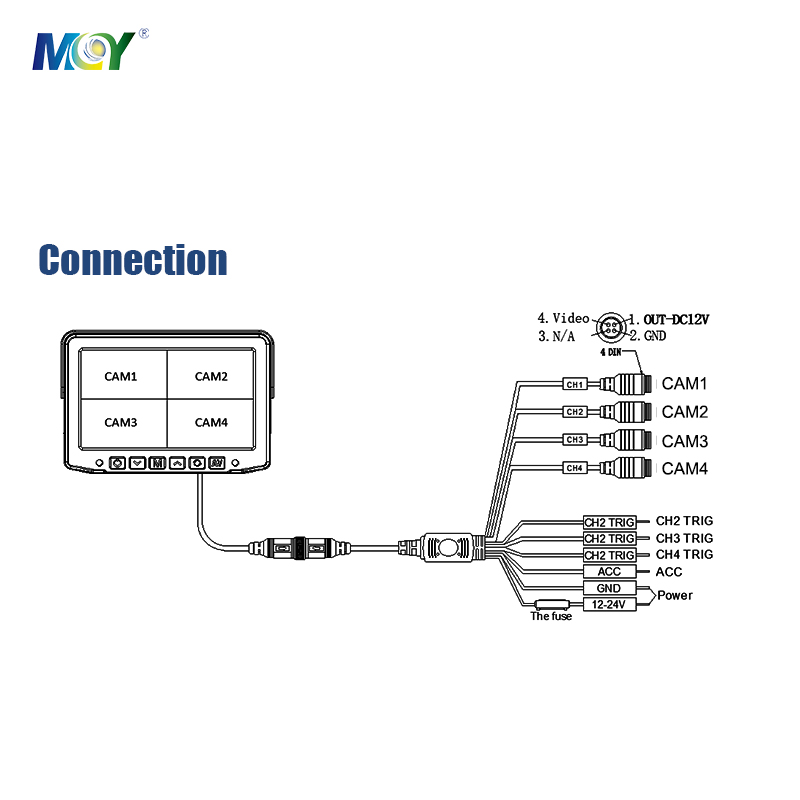

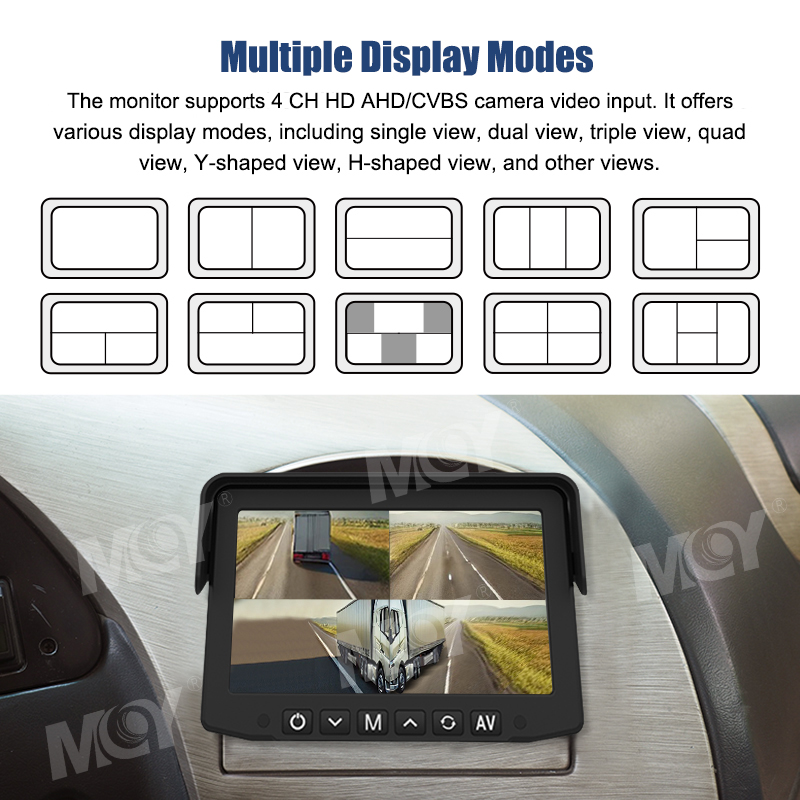

10 Selectable Viewing Modes: Single full view, dual split view, triple split view, quad split view. - 4-Channel Video Input: 4 x 4 pin aviation male connector (M12), AHD/CVBS video input. Supports automatic image switching via trigger lines (e.g., when reversing or using turn signals).
- SD Card Video Storage: Support up to 256GB SD card for video recording, loop recording and video replay. East save and review footage directly on the monitor.
- Easy to Use: Adjustable brightness, contrast, and color settings for optimal viewing. Includes an IR remote controller for an easy operation and sunshade for anti-glare.
- Wide Voltage Compatibility: Works with 12V-32V systems, making it suitable for cars, buses, coaches, trucks, RVs, and more.
- After-Sales Support: We provide 12-month warranty and life-time technical support. If you have any questions, feel free to message MCY for prompt assistance.
