ECE R46 12.3 inch 1080P Bus Truck E-Side Mirror Camera
Model: TF1233, MSV18
The 12.3inch E-side mirror camera system, intended to replace the physical rearview mirror, captures road conditions images throung dual lens cameras mounted on the left and right side of the vehicle, and then transmits to the 12.3-inch screen fixed to the A-pillar within the vehicle.
The system offers drivers an optimal Class II and Class IV view, compared to standard exterior mirrors, which can greatly increase their visibility and decrease the risk of getting into an accident. Moreover, the system provides a high definition, clear and balanced visual representation, even in challenging scenarios such as heavy rain, fog, snow, poor or variable lighting conditions, helping drivers see their surroundings clearly at all times while driving.
Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.
Send email to us
Product Details
camera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3inch screen fixed on
the A-pillar inside the vehicle, and then display on the screen.

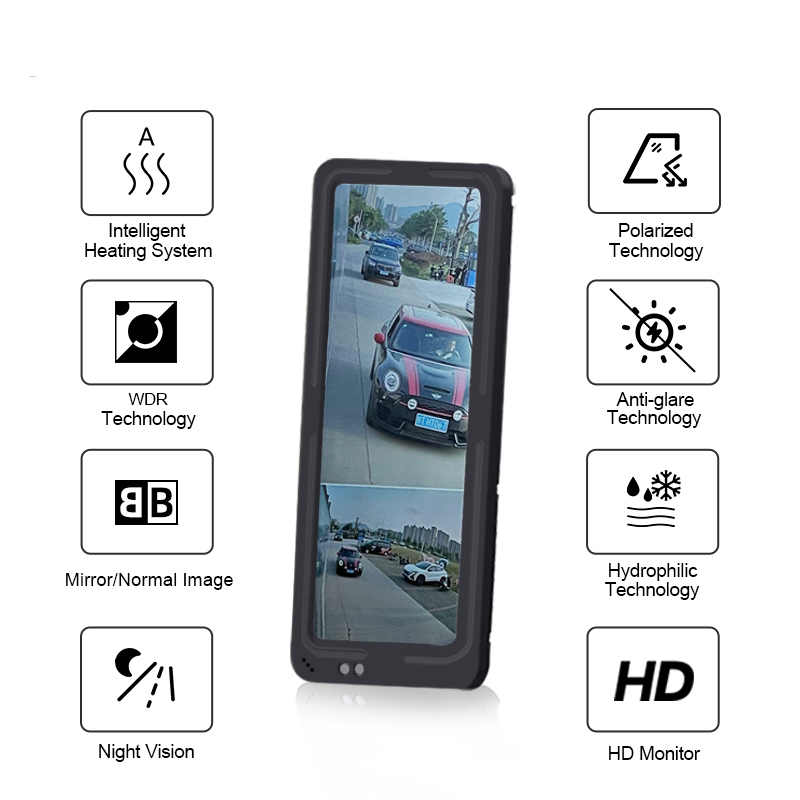

- WDR for capturing clear and balanced images/videos

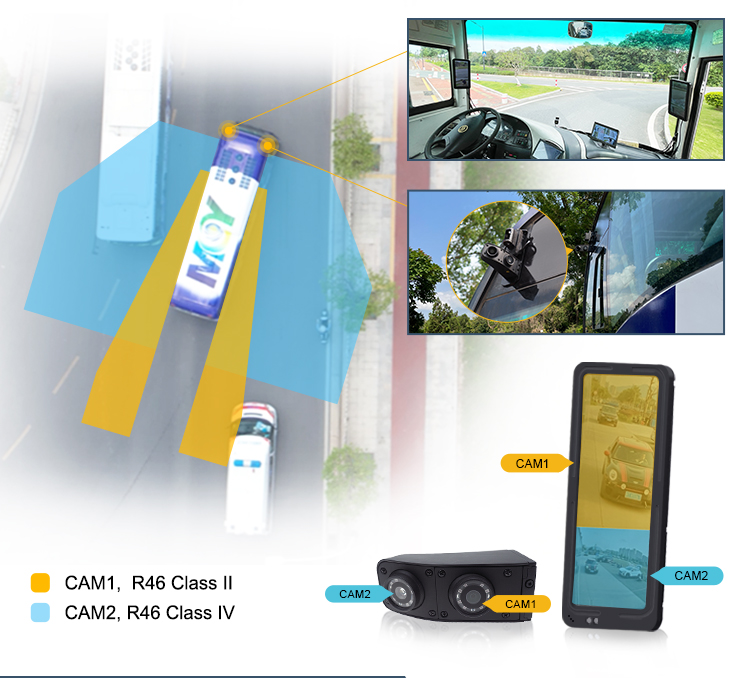

- Class II and Class IV view to increase driver visibility
- Hydrophilic coating to repel water droplets
- Glare reduction to lower eye strain
- Automatic heating system to prevent icing (for option)
- BSD system for road users detection (for option)
- Support SD card storage (max. 256GB) (for option)
Application
The 12.3 inch E-side Mirror is a cutting-edge technology that offers a wide range of benefits to drivers in various application scenarios. Here are some of the most suitable application scenarios for 12.3 inch E-side Mirror:
- Commercial Trucking – Commercial truck drivers can use the 12.3 inch E-side Mirror to improve their visibility and safety on the road. This is especially important when driving in tight spaces or in adverse weather conditions.
- Bus and Coach Transportation – Bus and coach drivers can use the 12.3 inch E-side Mirror to improve their visibility and safety on the road. This can help to prevent accidents and improve passenger safety.
- Emergency Vehicles – Emergency vehicle drivers can use the 12.3 inch E-side Mirror to improve their visibility and response times when driving in emergency situations.
- Fleet Management – Fleet managers can use the 12.3 inch E-side Mirror to monitor their drivers and ensure that they are driving safely and efficiently. This can help to reduce accidents, improve fuel efficiency, and reduce maintenance costs.
In conclusion, the 12.3 inch E-side Mirror is a versatile technology that offers a wide range of benefits to drivers in various application scenarios. It can be used by commercial truck drivers, bus and coach drivers, emergency vehicle drivers, individuals, and fleet managers to improve visibility, safety, and efficiency on the road.

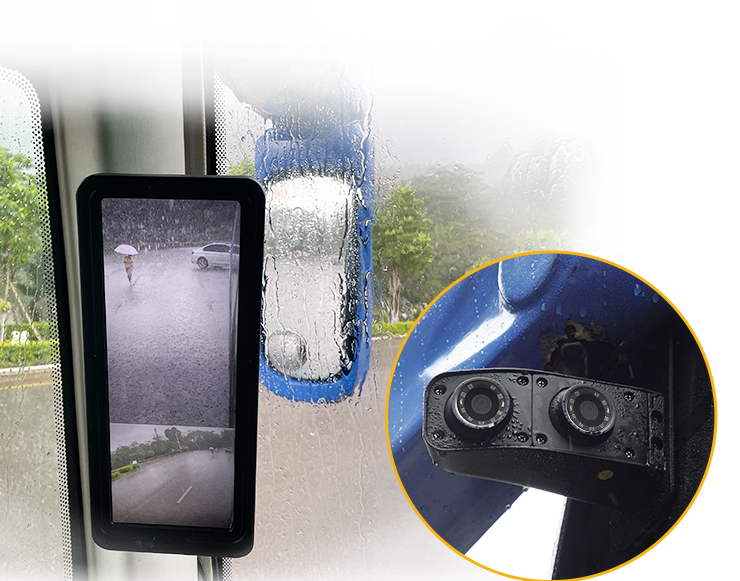

Hydrophilic Coating
With hydrophilic coating, water droplets can spread quickly and no dew condensation, it can provide a high defintion clear image, even in extreme conditions such as heavy rain, fog, snow.

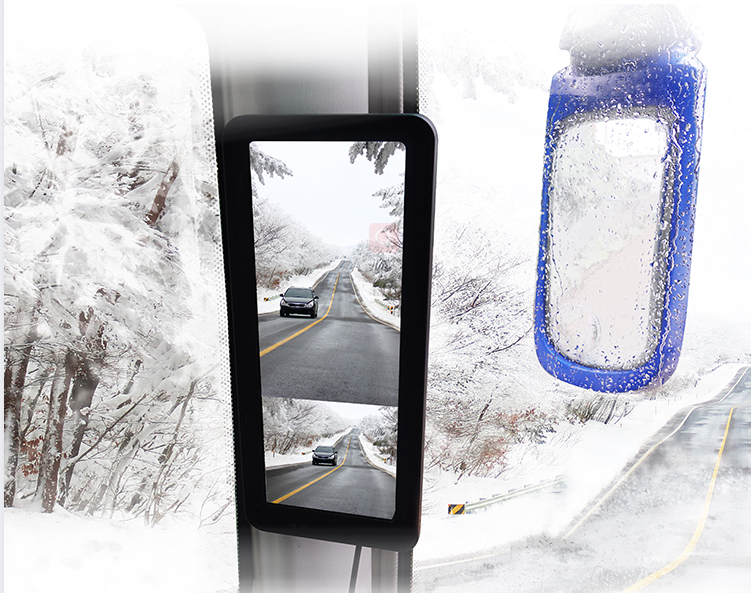

Intelligent Heating System
Once sensing temperature below 5c,the system will starts heating function automatically and capture a perfect vision even in low temperature and snowy weather.
Product Display
7INCH Monitor
12.3inch Electronic Rearview Mirror Monitor
| Model | TF1233-02AHD-1 |
|---|---|
| Screen Size | 12.3 inch (8:3) IPS |
| Resolution | 1920 * 3 (RGB) * 720 Pixel |
| View Angle | L: 85° / R: 85° / U: 85° / D: 85° |
| Active Area | 292.32 (H) * 109.62 (V) [mm] |
| TV System | PAL & NTSC (Auto) |
| Brightness | 750 cd/m² |
| Contrast | 1000:1 |
| Operation Method | Remote Control |
| Language | Simplified Chinese / English |
| Power Supply | DC10V–32V |
| Power Consumption | MAX 25W |
| Working Temperature | -40℃ ~ 75℃ |
| Storage Temperature | -40℃ ~ 75℃ |
| Signal Interface | 4pin Din Aviation Male Connector (1. +12V; 2. GND; 3. NC; 4. VIDEO) |
| Video Input | 2ch Video Input (AHD 720P / 1080P) |
| Housing Material | Metal |
| Outer Dimension | 343mm * 160mm * 31.5mm (L*W*H) |
| Net Weight | 1035g |
AI Reversing Camera
Dual Lens Side View Camera
| Model | MSV18-20EM-25-M&20EM-12-M | |
|---|---|---|
| TV System | PAL/NTSC (optional) | PAL/NTSC (optional) |
| Picture Elements | 1920 (H) x 1080 (V) | 1920 (H) x 1080 (V) |
| Sensitivity | 0.01 Lux | 0.01 Lux |
| Scanning System | Progressive scan RGB CMOS | Progressive scan RGB CMOS |
| Synchronization | Internal | Internal |
| S/N Ratio | More than 46dB (AGC Off) | More than 46dB (AGC Off) |
| Auto Gain Control (AGC) | Auto | Auto |
| Electronic Shutter | Auto | Auto |
| BLC | Auto | Auto |
| Infrared Spectrum | n/a | n/a |
| Infrared LED | n/a | n/a |
| Video Output | 1 Vp-p, 75Ω, AHD | 1 Vp-p, 75Ω, AHD |
| Audio | N/A | N/A |
| Mirror | Available | Available |
| ICR | N/A | N/A |
| Noise Reduction | 3D | 3D |
| Dynamic Range | 120 dB | 120 dB |
| Lens | f2.5mm Megapixel | f2.5mm Megapixel |
| Power Supply | 12V DC±10% | 12V DC±10% |
| Power Consumption | 85mA(Max) | 185mA(Max) |
| Dimensions | 150 x 60 x 83.9 mm | |
| Weatherproof/Waterproof | IP69K | |
| Operating Temperature | -30°C ~ +70°C | |
