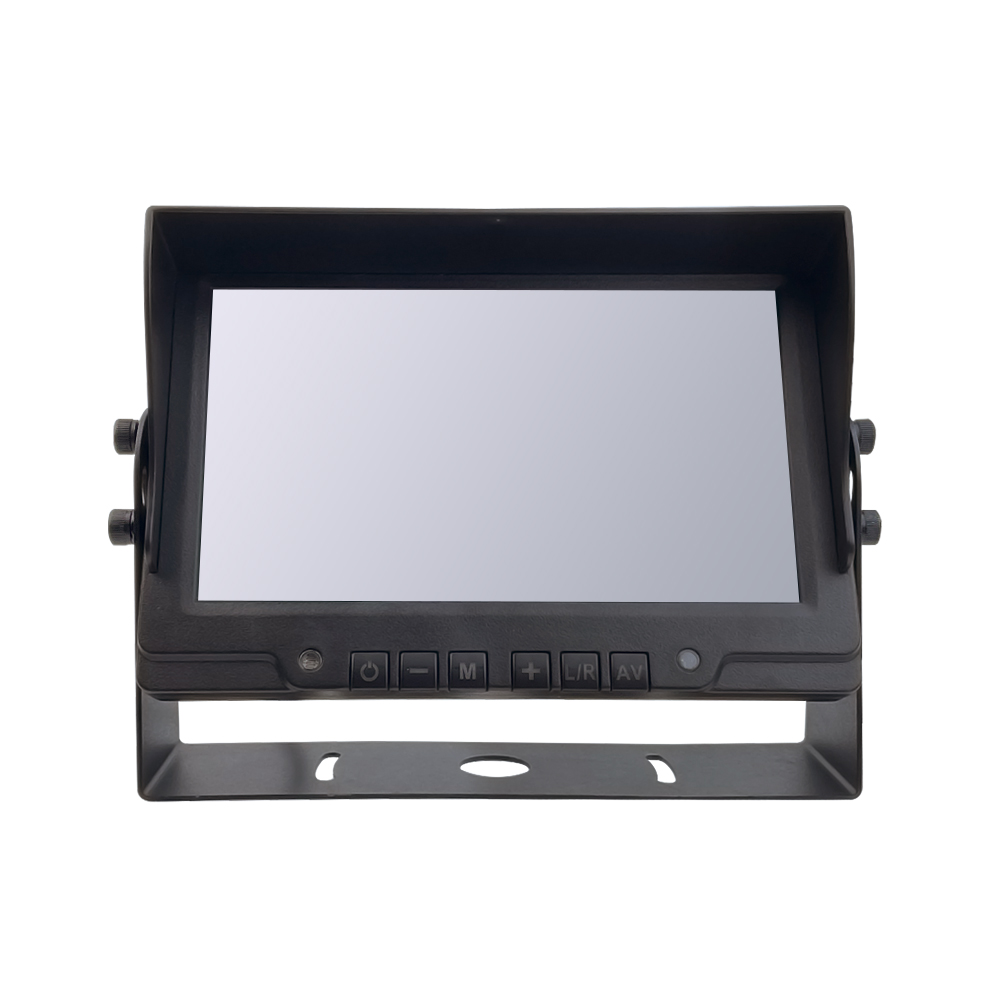

7 inch HD TFT LCD Color Monitor (1024×600)

Model: TF72-02AHD

Screen Size7 inch
Resolution1024 × 600
TV SystemPAL / NTSC
Video Inputs2CH camera inputs, 1CH trigger
Video Input SignalAHD1080P / 720P / CVBS
Audio InputOptional
Aspect Ratio16:9
Connections4 Pin Din
Power SupplyDC 12V / 24V

Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.

Send email to us

Features:

  • 7inch TFT LCD Monitor
  • 16:9 or 4:3 wide screen display
  • Resolution: 1024*600
  • Brightness: 400cd/m2
  • Contrast: 500:1
  • PAL& NTSC
  • Audio input
  • Built in speaker (options)
  • Video Input: AHD 1.0Vp-p or CVBS 1.0Vp-p 75Ω
  • Support AHD 1080P/720P /CVBS
  • Viewing Angle: L/R:85°U/D:85°
  • Power supply: DC 12V/24V;  Output: DC12V(To camera power)
  • Power consumption: Max 5W
  • 4PIN connector suitable for Camera (options)
  • Working Temperature: -20℃～70℃
