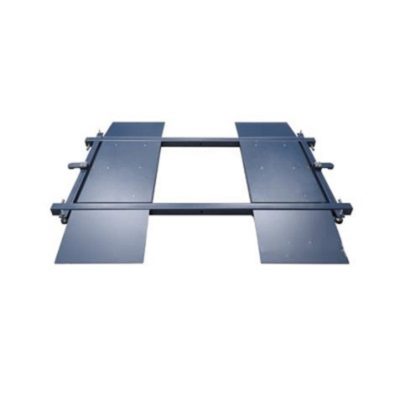

Mobile Sideslip Tester
Jevol designed RSS-500M and RSS-700M Mobile Sideslip Tester
- RSS-500M and RSS-700M Sideslip Tester can test the comprehensive degree of the deviation.
- No need pit foundation anymore, easy to be move around.
- Highly precise sideslip tester sensor ensures the accurate reach 0.1mm.
- Pre-check the vehicle toe-in before wheel alignment, saving your time.
- Only 5 seconds by driving through to results, Sideslip（mm）.
- It can be used in garages and vehicle inspection stations, to compose as a vehicle safety test lane with Mobile Brake Tester, and Mobile Suspension Tester.
For more information please
Delivery, installation and calibration not included
Specifications
| Item | RSS-500M | RSS-700M |
|---|---|---|
| Max axle load | 3T | 10T |
| Test speed | 5-10km/h | 5-10km/h |
| Range | ±15mm | ±15mm |
| Testing Plate Length | 500mm | 1000mm |
Products you might be interested in
HGV / Commercial Vehicle Mobile Brake Tester
Jevol designed RRT-2500M, RRT-7500M and RRT-9500M Mobile Brake Tester
Explore
Pneumatic Single Cylinder Tyre Changer
Equipped with a multi-function tyre press, can press open 16/17.5/19.5/22.5-inch...
Explore
Three Cylinder Electric Type Tyre Changer
The three-cylinder system provides enhanced lifting force, improved bead...
Explore
TVNHD-8000 / 8101 Headlight Tester
Used to measure the luminous intensity, height and optic axis offset of...
Explore
Vehicle Dimension Laser Scanning System
Vehicle Dimension Laser Scanning System, Easy to operate, laser radar...
Explore
FAQs
What makes a Mobile Sideslip Tester suitable for flexible vehicle testing?
A Mobile Sideslip Tester is designed for workshops and inspection facilities that need greater flexibility than a permanently installed sideslip system. It can be used as part of a mobile vehicle testing setup and combined with other mobile inspection equipment.
Can a Mobile Sideslip Tester be used without building a permanent test lane?
Yes. A mobile configuration provides an alternative for businesses that do not want to commit to a permanently installed testing lane. It can be incorporated into a flexible testing area according to the workshop’s operational requirements.
What does a Mobile Sideslip Tester measure?
The tester uses a high-precision displacement sensor to measure the vehicle’s driving deviation or sideslip. This can help identify potential wheel alignment issues and determine whether further alignment testing may be required.
Can mobile sideslip testing be used as a pre-check before wheel alignment?
Yes. Sideslip testing can provide a quick indication of vehicle deviation before carrying out a full wheel alignment test. This can help technicians identify vehicles that require further investigation of their steering or wheel alignment.
Is a Mobile Sideslip Tester suitable for vehicle inspection stations?
Yes. Tech Vezoto’s sideslip testing range is designed for use in garages and vehicle inspection stations. The mobile version can be particularly useful where testing equipment needs to support a flexible or relocatable inspection setup.
Can the Mobile Sideslip Tester be combined with a Mobile Brake Tester?
Yes. A Mobile Sideslip Tester can be combined with a Mobile Brake Tester, Mobile Suspension Tester and Mobile Play Detector to create a comprehensive mobile vehicle inspection or safety testing setup.
