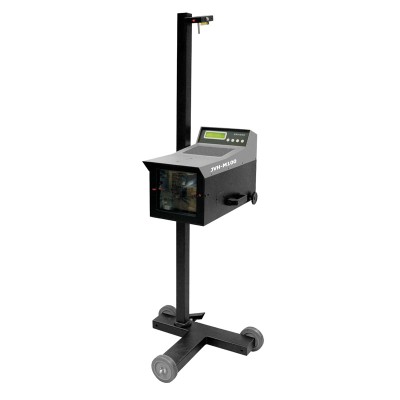

JVH-M100 Manual Headlamp Tester
JVH-M100 Manual Headlamp Tester
JVH-M100 Manual Headlamp Tester is for testing the luminous intensity, light height and optic deviation of the Headlamp of automotive. It is equipped with Chinese or English LCD display, standard RS-232C interface, analogue data output interface and battery-operated in low power consumption mode.
Assembly and disassembly are fast, and it is very easy to move.
Provide auxiliary angular calibration to Headlamp testers. (The instrument automatically indicates the adjustment direction of the Headlamp tester).
For more information please
Delivery, installation and calibration not included
Specifications
| Item | Parameters |
|---|---|
| Measuring Rage | Central height of Headlamp: 50cm ~ 130cm Luminous intensity: 0 ~ 120,000cd Optic axis deviation of high beam and low beam: Up – Down: U 1〬 30 ’ ~D 2〬 30 ‘ (U 20cm/10m ~ D 40cm/10m) Left – Right: L 2〬 30 ‘ ~ R 2〬 30 ’ (L 40cm/10m ~ R 40cm/10m) |
| Measurement Accuracy | Luminous intensity of high beam: ± 12% Optic axis deviation of high beam: ± 12’ Optic axis deviation of low beam: ± 15’ Central elevation of Headlamp: ± 1cm |
| Power Supply | AC: 220V ,50Hz Or DC: 9V Battery DC: 1.5V x6 Batteries |
