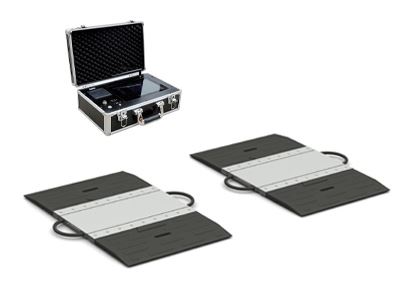

Portable Vehicle Overload Detector
Portable Vehicle Overload Detector
Jevol designed Portable Vehicle Overload Detector
- Made of high-strength aluminium alloy, the weighing plate uses a spoke-type imported sensor to ensure high weighing accuracy and sensitive response.
- The solid rubber ramp and well-designed connection with the weighing platform help maintain balance even under uneven load conditions, preventing platform bounce during weighing and reducing overall product weight.
- Digital menu operation with complete data retrieval and statistical functions
- Equipped with both AC and car chargers, a built-in high-capacity battery, and real-time battery level display. High capacity battery can maintain continuous operation for 70 hours and can automatically shut down.
- Built-in high-speed micro printer.
- Capable of storing test records for up to 13,000 vehicles.
- Supports working modes for road administration, traffic police, and others to comply with relevant laws and regulations.
- In addition to all the functions of the single-channel type, the dual-channel version allows independent testing and debugging of the left and right channels, offering improved accuracy. It can also be used to detect unbalanced vehicle load.
- A standard RS232 communication port enables data exchange between the system, computer, and other devices.
For more information please
Delivery, installation and calibration not included
Specifications
| Items | POD-30T |
|---|---|
| Weighing Mood | Single axle weighing in turn/Dynamic weighing without parking |
| Weighing Range | Wheel load: ≤15T(Range optional) Axle load: ≤30T(Range optional) |
| Reading Accuracy | 10kg/5kg(optional) |
| Dimension | Plate dimension: 700*430*29mm(each) Instrument box dimension: 410*300*200mm |
| Weight | Plate weight: 20kg(each) , Instrument box weight: 5kg |
| Transmission Mode | Wired transmission/Wireless transmission |
| Dynamic Error | ±1%F.S ~ ±3%F.S(≤5km/h even pace) |
| Waterproof/Dustproof Level | Plate: IP67 Instrument box: IP65 |
| Storage Condition | Temperature: -45 ~ 80℃ Relative humidity: <90%RH |
| Parking List | 1/Wired or wireless Instrument x1 2/Weighing plate x2 3/Ramp x4 4/Storage box x2 5/Standard accessary(charger,printing paper) |
