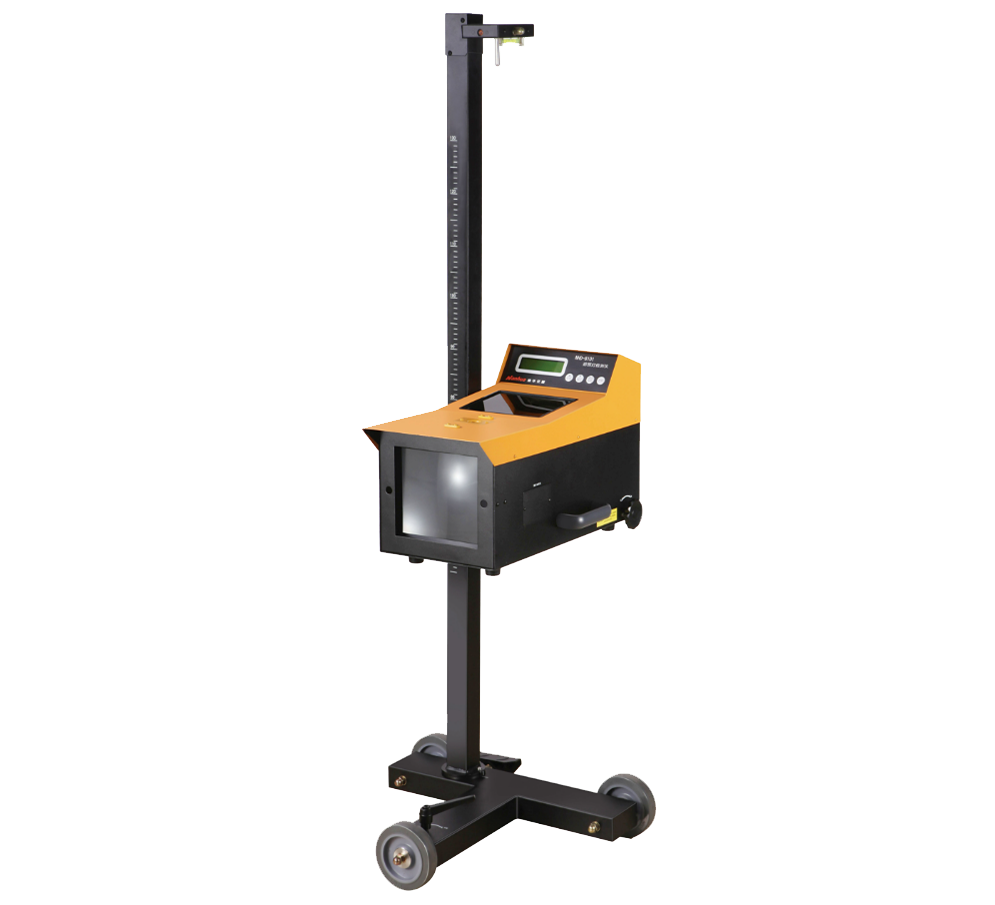

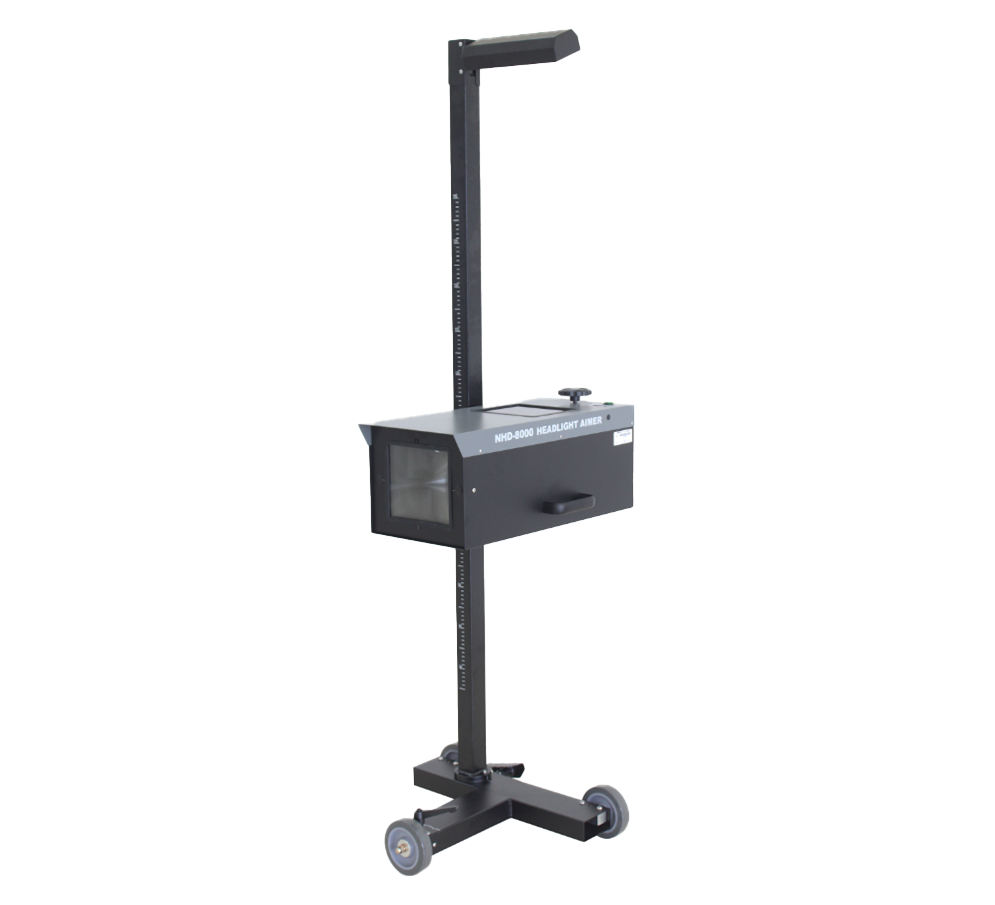

TVNHD-8000/ 8101 Headlight Tester

Used to measure the luminous intensity, height and optic axis offset of the headlamps of automobiles and motorcycles.

Measuring Range:

Central Height of Headlight: 40~135cm/ 50~135cm
High-Beam Luminous Intensity: 0 ~ 100,000 cd/ 0 ~ 120,000cd
Optic Axis Offset:
U 1º30 ~ D 2º30’ (U 20cm/10m ~ D 40cm/10m)
L 2º30’~ R 2º30’ (L 40cm/10m~ R 40cm/10m)

Price starts from

TVNHD-8000 – £1,250
TVNHD-8101 – £1,695

Inquire Now

Delivery, installation and calibration not included

Details

Used to measure the luminous intensity, height and optic axis offset of the headlamp of automobiles and motorcycles.

Features

  • LCD interface in English/Chinese, easy for operation;
  • Equipped with RS232 serial port and analogue data output interface;
  • Equipped with laser device to assist alignment (NHD-8101);
  • Low power consumption, able to operate with battery.

Applications

Applicable to garages, vehicle repair & maintenance shops and 3S/4S shops.

Specifications

NHD-8000 NHD-8101
Measuring Range
Central Height of Headlamp 40 ~ 135 cm 50 ~ 135 cm
High-beam Luminous Intensity 0 ~ 100,000 cd 0 ~ 120,000 cd
Optic Axis Offset U 1°30' ~ D 2°30' (U 20cm/10m ~ D 40cm/10m)
L 2°30' ~ R 2°30' (L 40cm/10m ~ R 40cm/10m)
Indication Error
High-beam Luminous Intensity ±12%
High-beam Optic Axis Offset ±15'
Low-beam Optic Axis Offset ±15'
Central Height of Headlamp ±1 cm
Operation Condition
Measuring Distance 50 cm
Ambient Temperature 5 ~ 40°C
RH < 95%
Atmospheric Pressure 70.0 ~ 106.0 kPa
Site The equipment and vehicle must be placed at the same plane horizontal error not more than 1%.
Others
Power Supply 1*DC9V battery (can be supplied by cigarette lighter or storage battery) AC220V±10% 50±1Hz or 1*DC9V battery; 6*1.5V AAA battery for laser device.
Power Consumption Total ≤0.5W Total ≤2W
Weight Approx. 21kg Approx. 30kg
