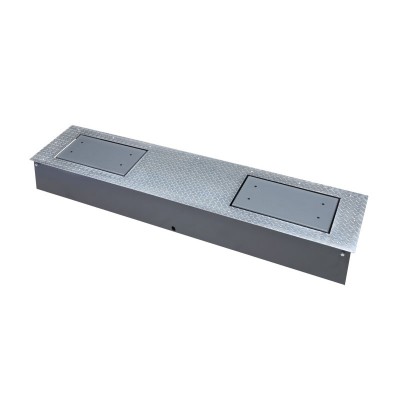

The RST-1500 measures suspension performance (%), grip rate (%) and wheel load (kg). These measurements help technicians assess suspension performance and identify potential issues during vehicle inspection and maintenance.

Yes. The RST-1500 Vehicle Suspension Tester is designed according to EUSAMA standards, making it suitable for suspension performance testing using a recognised European testing method.

The tester operates at a frequency of 23Hz and uses controlled vibration to simulate high-frequency road conditions. This allows the suspension system and shock absorbers to be tested under controlled conditions.

The RST-1500 has a maximum 3-tonne axle load capacity, making it suitable for the vehicle types and inspection applications within this capacity range. Vehicle compatibility should be confirmed before purchasing the equipment.

Yes. The RST-1500 is designed for use in garages and vehicle inspection stations. It can also form part of a wider vehicle safety test lane alongside compatible brake, sideslip and speedometer testing equipment.

Yes. The Vehicle Suspension Tester can be combined with a Vehicle Brake Tester, Vehicle Sideslip Tester and Speedometer Tester to create a more complete vehicle safety testing lane.

The RST-1500 uses a 380V/50Hz power supply and has two 3.0kW motors. Workshops should check their available electrical supply and installation requirements before arranging equipment installation.

The RST-1500 measures approximately 2500 × 550 × 356mm and weighs around 320kg. It has an 880–2200mm track range and a 6mm test amplitude, which should be considered when planning the testing area.

Yes. Variable frequency is available as an optional feature for the RST-1500. This can provide additional flexibility where a workshop or vehicle inspection facility requires different suspension testing configurations.
