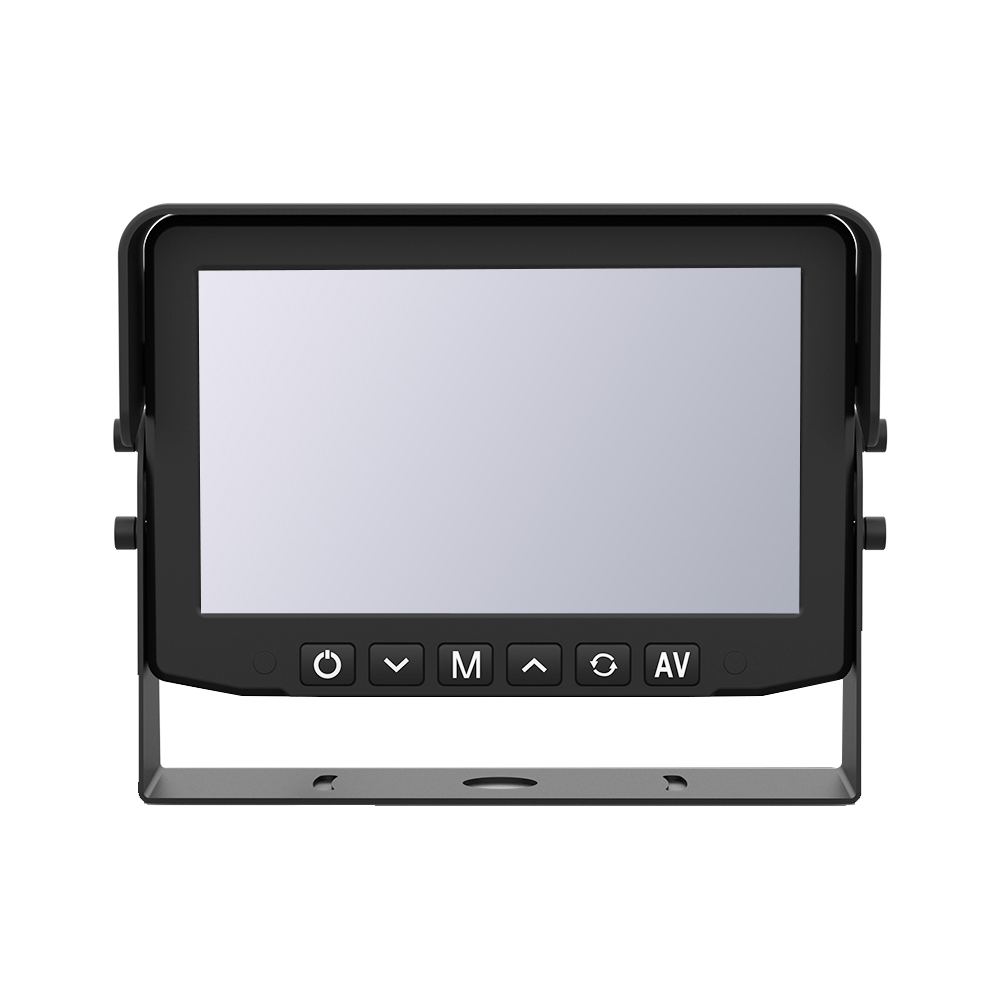

7inch AHD/CVBS Video LCD Monitor (1024×600)
Model: TF78-02AHD
| Screen Size | 7 inch |
|---|---|
| Resolution | 1024 × 600 |
| TV System | PAL / NTSC |
| Video Inputs | 2CH camera inputs, 1CH trigger |
| Video Input Signal | AHD1080P / 720P / CVBS |
| Audio Input | Optional |
| Aspect Ratio | 16:9 |
| Connections | 4 Pin Din |
| Power Supply | DC 12V / 24V |
Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.
Send email to us
Features:
- 7inch TFT LCD Monitor
- 16:9wide screen display
- Resolution:1024×600
- Brightness: 400cd/㎡
- 2 Ways AV inputs
- Contrast:500 (Typ.)
- Audio input (optional)
- Built in speaker (optional)
- PAL& NTSC
- Power:Max 5W
- Video input: AHD1080P/720P/CVBS
- Power supply: DC 12V/24V (12-32V)
- 4PIN connector suitable for Camera (options)
- Suitable for back view/side cameras
