Smart AI Backup Rear View Reversing Camera For Heavy Duty Truck Bus
Features

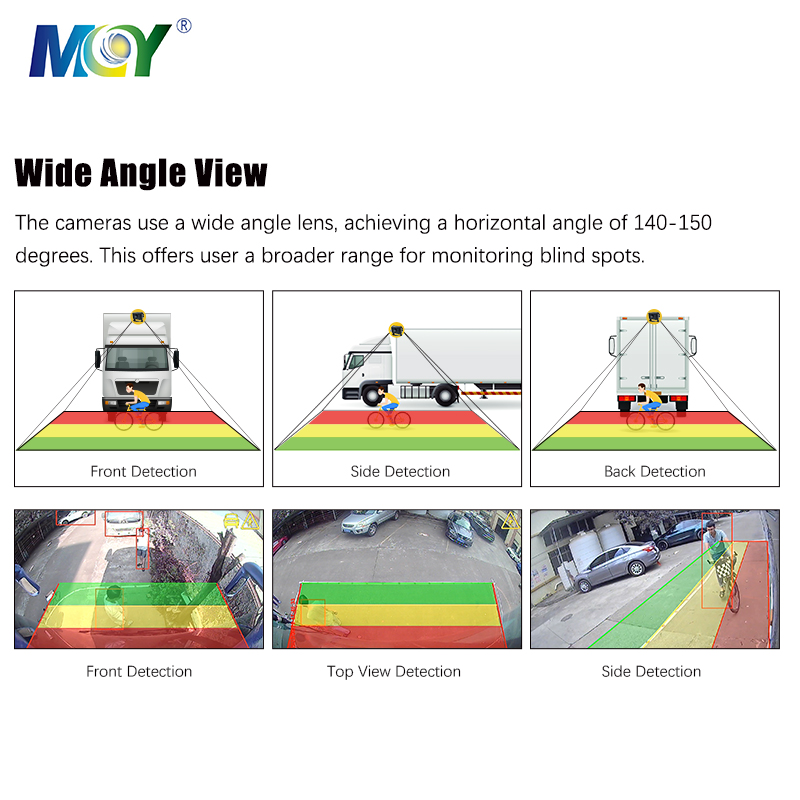

- 7inch HD side / rear / overlook camera system for real time detecting pedestrians, cyclists, and vehicles

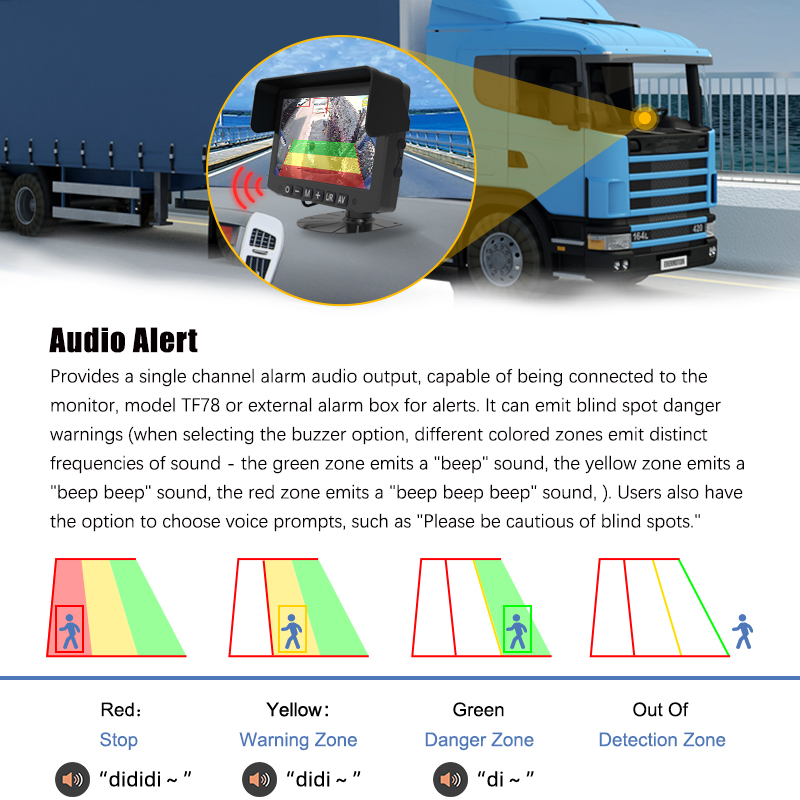

- Audible alarm output and highlight pedestrian,cyclists or vehicles with box.
- Monitor built in speaker, support audible alarm output
- External buzzer with audible alarm to alert pedestrians, cyclists or vehicles (optional)
- Warning distance can be adjustable: 0.5~10m

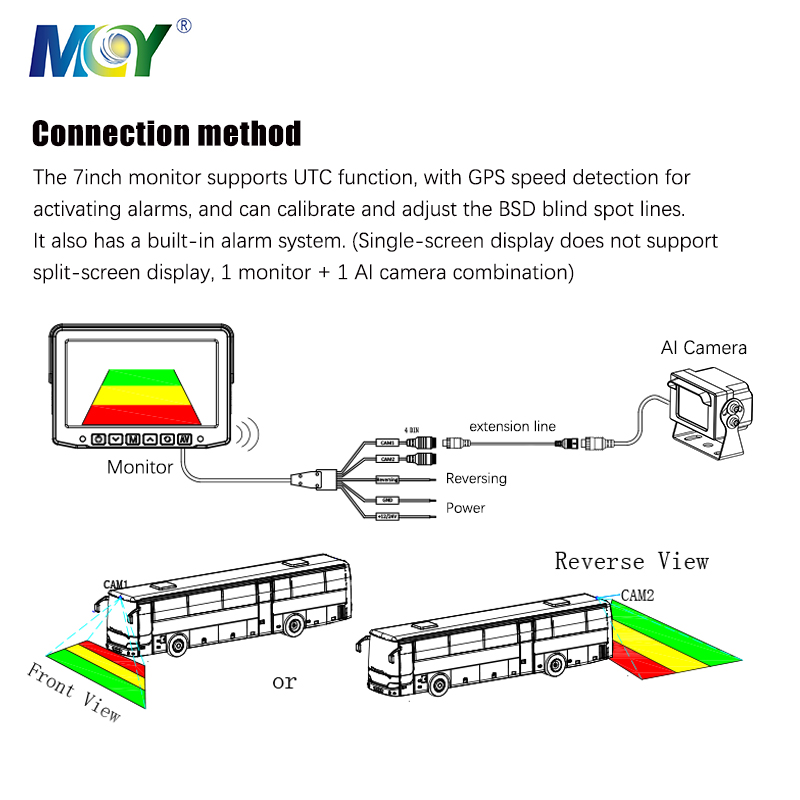

- Compatible with AHD monitor and MDVR

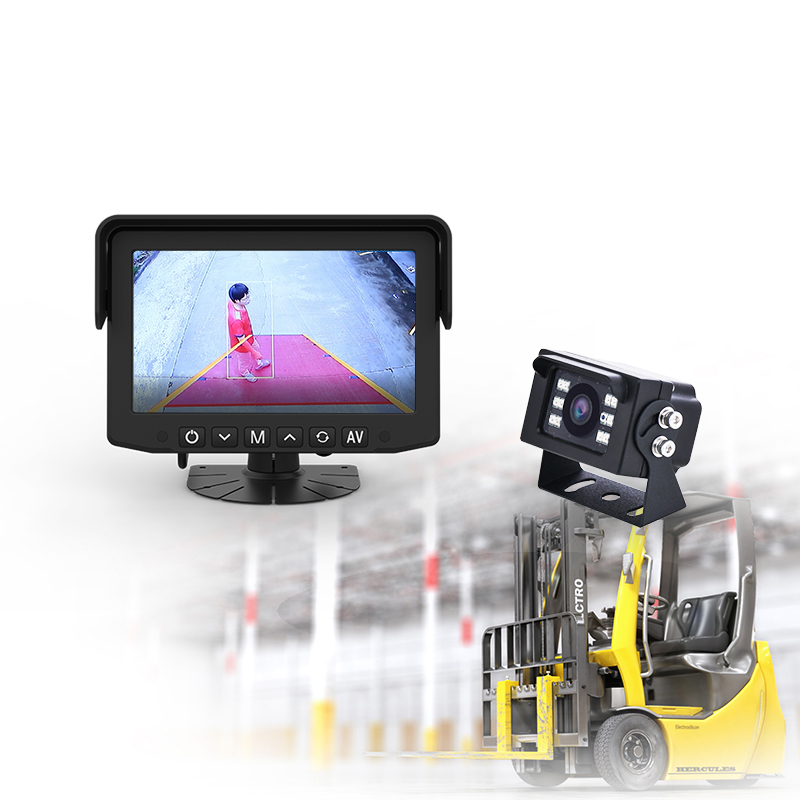

- Application: bus, coach, delivery vehicles, construction trucks, forklift and etc.
Tech Vezoto welcomes all OEM/ODM projects. Any inquiry, please send an email to us.
Send email to us

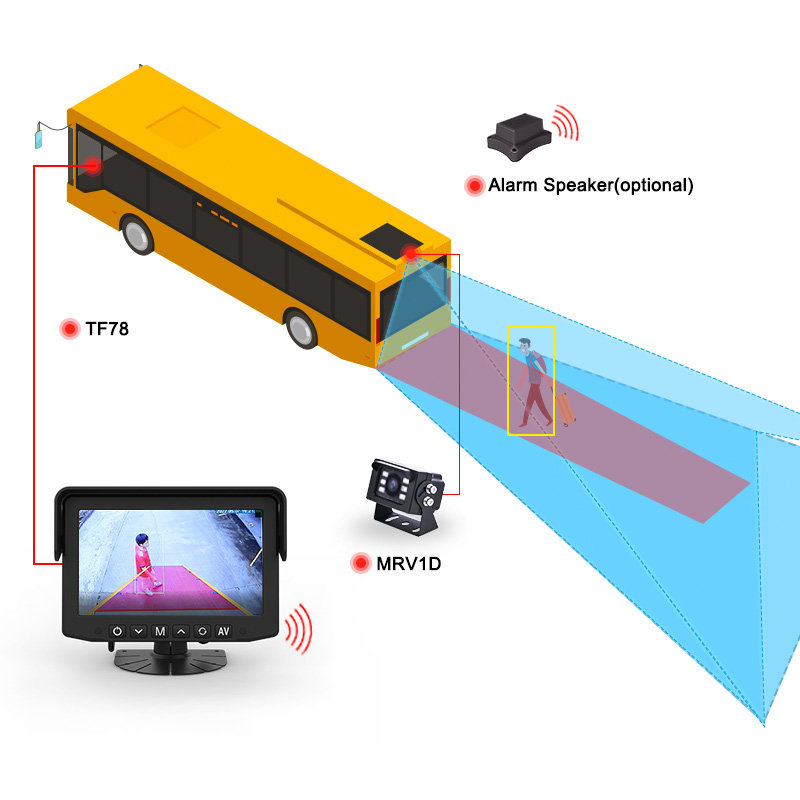

Product Details

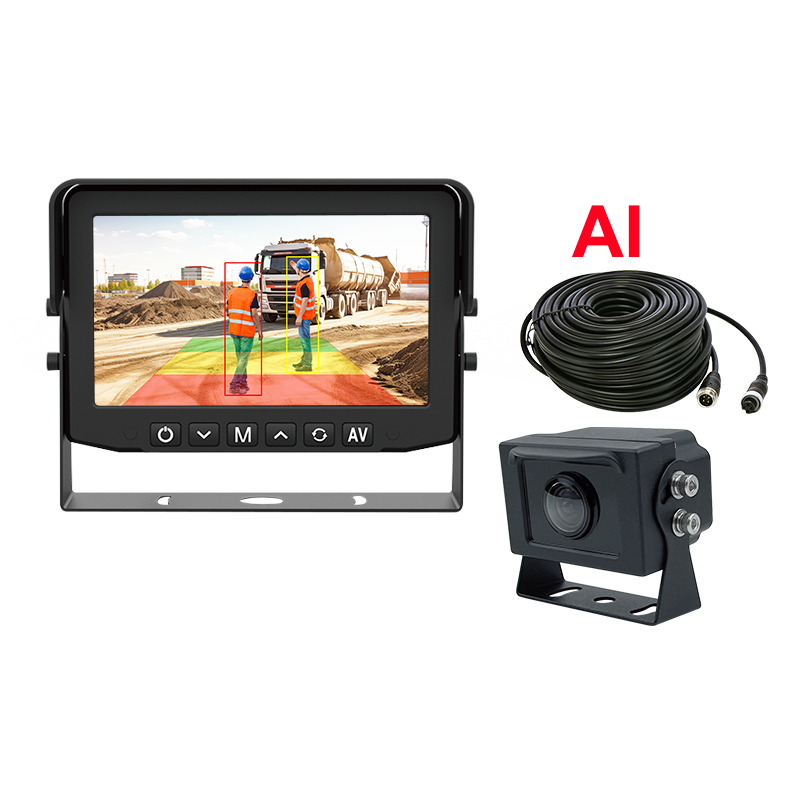

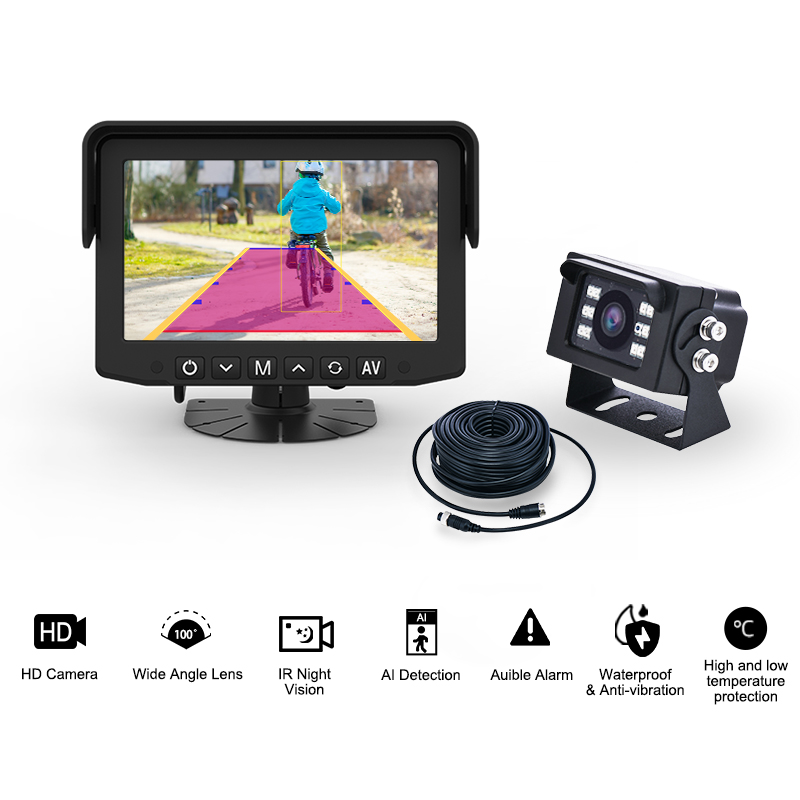

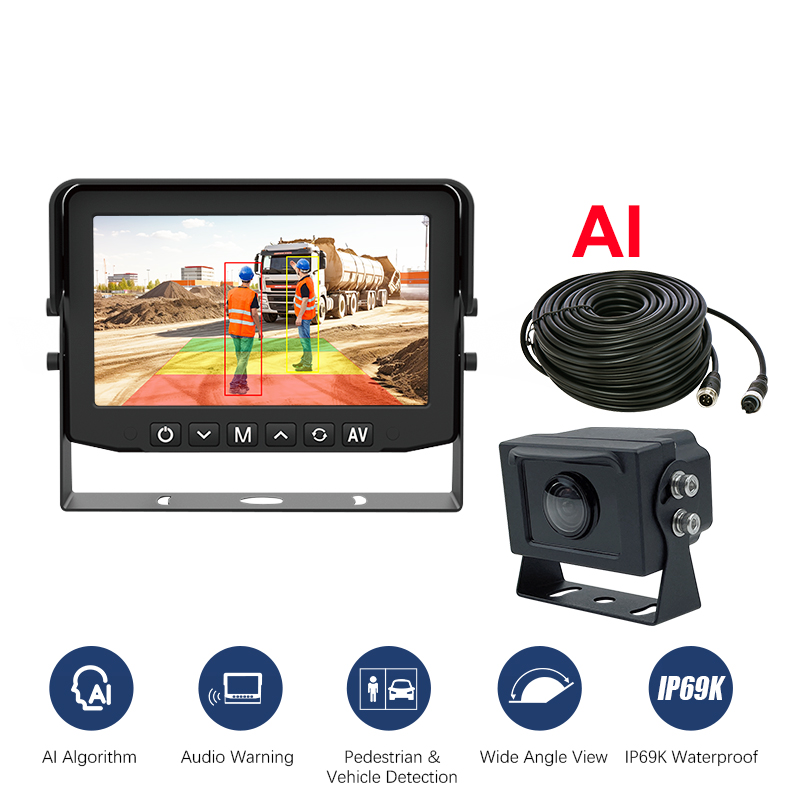

TF78
- 7inch HD Monitor
- Parking assistance
- Visual & audible alarm to aler the driver when detect pedestrian/cyclists
- Warning distance can be adjustable: 0.5m-20m
Alarm Speaker(optional)
- Audible & Visual alarm to alert pedestrian/cyclists stay away from the bus.
- Audible alarm signal can be customized.
MRV1D
- AHD 720P Al camera
- Reverse blind spot full coverage
- HD IR night vision

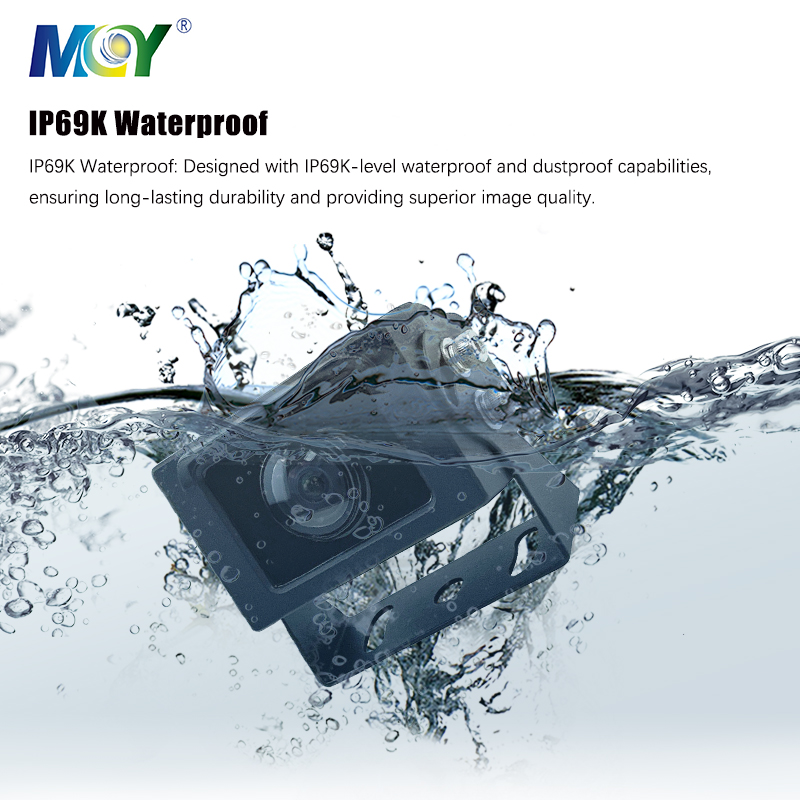

- IP69K waterproof
Application
Suitable for many scenarios, such as indoor/outdoor security systems and vehicle and ship surveillance.

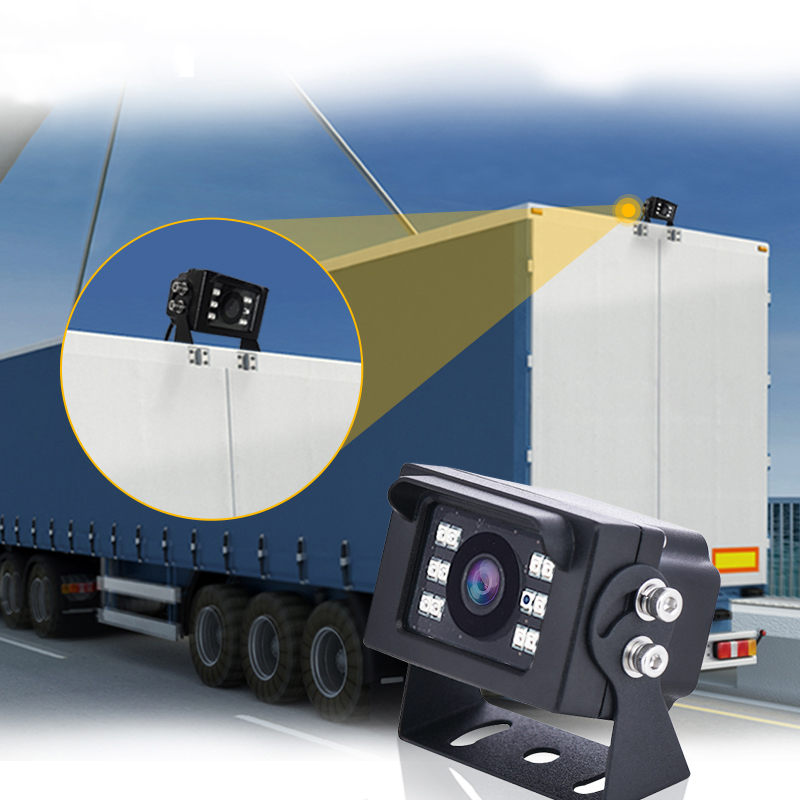

Vehicle side camera application for trucks is a technology solution designed to enhance the safety and efficiency of commercial trucking operations. This application uses cameras mounted on the side of the truck to capture real-time video footage of the vehicle’s surroundings. The video footage is then transmitted to a screen in the cab, allowing the truck driver to have a better view of the road and potential obstacles, such as other vehicles, pedestrians, or cyclists
vehicle side camera application for trucks is a technology solution designed to enhance the safety and efficiency of commercial trucking operations. This application uses cameras mounted on the side of the truck to capture real-time video footage of the vehicle’s surroundings. The video footage is then transmitted to a screen in the cab, allowing the truck driver to have a better view of the road and potential obstacles, such as other vehicles, pedestrians, or cyclists
Product Display
7INCH Monitor
| Monitor | TF78-02AHD-B |
| Size | 7 inch (16:9) |
| Resolution | 1024(H) × 600(V) |
| Brightness | 400cd/m² |
| Contrast | 500 (Typ.) |
| Viewing Angle | 85/85/85/85 |
| Power Supply | DC12V / 24V (10V~32V) |
| Power Consumption | MAX 5W |
| Video Input | AHD 1080P/720P/CVBS |
| TV System | PAL/NTSC/AUTO |
| Language | Chinese/English |
| Operation mode | Button, remote controller |
| CDS | Auto dimming |
| BSD Blind Spot Detection Area | Highlight in red |
| BSD Audible Alarm | Audio power: MAX 2W |
| Working Temperature | -20 ~ 70°C |
AI Reversing Camera
| Model | MRV1D-10KM-28-M |
| Image Sensor | 1/2.9” |
| TV System | PAL/NTSC (Optional) |
| Effective Pixel | 1280 (H) × 720 (V) |
| Sensitivity | 0 Lux (IR LED On) |
| Scanning System | Progressive scan RGB CMOS |
| Synchronization | Internal |
| S/N Ratio | More than 38dB (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Infrared LED | 850nm |
| Infrared LED Range | 18 LEDs |
| Video Output | 1 Vp-p, 75Ω, AHD |
| Audio | Connect external voice alarm (optional) |
| Mirror | Available |
| BSD algorithm | Available |
| Lens | f2.8mm Megapixel |
| Voice alarm volume output | MAX 2W |
| Power Supply | 9–18V DC |
| Power Consumption | 170mA |
| Net Weight | 210g |
| Weatherproof/Water Proof | IP69K |
| Operating Temperature | -20°C ~ +70°C |
